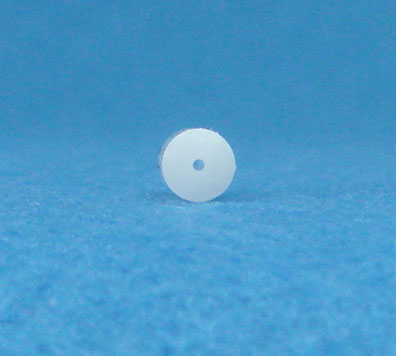

Special ID Ferrule | Large Hole Ferrule
It is a ferrule (zirconia capillary) of the special inside diameter used for connection of special fibers, such as POF/HPCF.
It corresponds to the SMA type, SC type, and LC type as standard, and can respond also to a special outside diameter and full length.
Specification
| Σ2.5 Ferrule | Σ1.25 Ferrule | SMA | SDL | |
| Outside Diameter | Σ2.4990 mm | Σ1.2490 mm | Σ3.1740 mm | Σ1.1 ` Σ3.2 mm |
| OD Tolerance | }0.001 mm | +0.005/-0.0015 mm | +0 / -0.004 mm | }0.001 mm |
| Length | 10.50 }0.05 mm | 6.40 +0.1/-0 mm | 12.70 }0.05 mm | 5 ` 12.50 mm |
| Inside Diameter | Σ128um ` Σ700um | |||
| ID Range | 128um ` 200um | 201um ` 400um | 401um ` 700um | |
| ID Tolerance | 5 um | 10 um | ||
| Concentricity | 10 um | 20 um | 40 um | |
¦The above is standard intersection. Furthermore, manufacture of the highly precise diameter ferrule is also possible.
