Singlemode Ferrule | SM Ferrule
A single mode ferrule is a zirconia ferrule for single modes used for connection of single mode fibers.
The core of a single mode fiber is very as small as 0.009mm, and in order for there to be no gap and to connect the cores, processing and inspection technique in which ferrule processing is very precise are needed.
By logos, coaxial processing using the wire centerless system which is also the feature of our company, and the inside diameter and coaxial hundred percent inspection in a contact type are conducted, and overly precise processing and inspection are conducted.
End-face Shape
Variations on end-face shape.
| Σ2.5mm Ferrule | Σ1.25mm Ferrule | |||||
| PC | APC | |||||
 |
 |
 |
 |
 |
 |
 |
| FLAT | PC | Cone | Step | LC | MU | LC35 |
Specification
| SC Ferrule | ST Ferrule | LCEMU Ferrule | ||||
| End-face Shape | PCEFLATEConeEStep | LC | MU | LC35 | ||
| Outside Diameter | Σ2.499}0.0005 | Σ1.249}0.0005 | ||||
| Concentricity | 0.001@E@ 0.0007 ( APC ) | |||||
| Inside Diameter | Σ0.125@@Σ0.1253@@Σ0.126 | |||||
| +0.001/-0 | ||||||
| Ferrule Length | 10.5}0.05 | 12.7}0.05 | 6.5}0.05 | |||
| End curve radius | 20 +5/-10 ( PC ) | |||||
¦Unit of length mm.

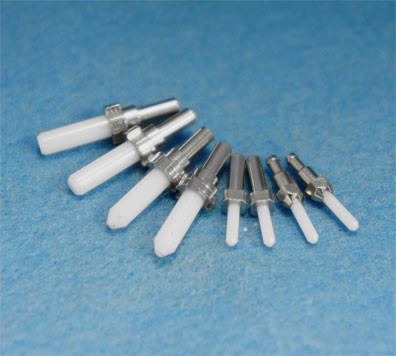

Single Mode Ferrule
Σ2.5mm Single Mode Ferrule
- SC/PC
- SC/FLAT
- SC/APC(Cone)
- SC/APC(Step)
- ST/PC
- SC w 16.5F
- SC w 21.9F
- SC w PBT F
- ST/PC w F(M)
Σ1.25mm Single Mode Ferrule
- LC35
- LC
- MU
Σ3.0mm Single Mode Ferrule
- SMA
Customized Single Mode Ferrule
LOGOS can provide customized SM ferrules as follows.
- with Slot
- Special OD
- Special Length
