Multimode Ferrule

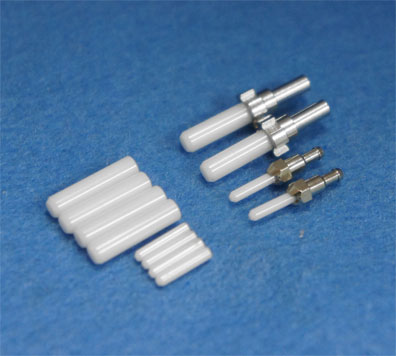

A multi mode ferrule is a zirconia ferrule for multi modes used for connection of multi mode fibers.
The diameter of a core of a multimode fiber is larger than the diameter of a core of a single mode fiber.

It became possible to manufacture a multi-mode ferrule without the necessity for inside diameter processing.
It is possible to provide a visitor with a quality multi-mode ferrule with budget prices by drastic reduction of a man day.

End-face Shape

Variations on end-face shape.

φ2.5mm Ferrule				φ1.25mm Ferrule
PC		APC

FLAT	PC	Cone	Step	LC	MU	LC35°

Specification

	SC Ferrule	ST Ferrule	LC・MU Ferrule
End-face Shape	PC・FLAT・Cone・Step		LC	MU	LC35°
Outside Diameter	φ2.499±0.001		φ1.249±0.001
Concentricity	≦0.004
Inside Diameter	φ0.1253　　φ0.126
	+0.003/-0
Ferrule Length	10.5±0.05	12.7±0.05	6.5±0.05
End curve radius	20 +5/-10 ( PC )
