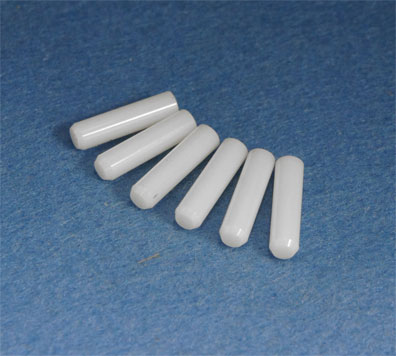

SMA Ferrule
The SMA ferrule mainly used for SMA905.
Offer of the highly precise SMA ferrule which employed the merit of the processability of zirconia efficiently to the metal ferrule (capillary) is possible.
(You can use it for communication)
Moreover, it excels also in the environmental-proof performances, such as heat resistance.
Specification
| Outside Diameter | Σ3.1740 mm |
| OD Tolerance | +0 / -0.004 mm |
| Length | 12.70 }0.05 mm |
| Inside Diameter | Σ125.3um ` Σ700um |
| ID Range | SM | MM | 128 ` 200 um | 201 ` 400 um | 401 ` 700 um |
| ID Tolerance | 1 um | 4 um | 5 um | 10 um | |
| Concentricity | 1.4 um | 5 um | 10 um | 20 um | 40 um |
¦The above is standard intersection. Furthermore, manufacture of the highly precise diameter ferrule is also possible.
