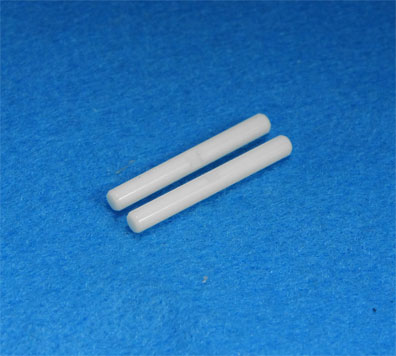

Long Ferrule
A long ferrule is a ferrule longer than a standard, and it is used for the stationary type attenuator using an attenuation fiber, the connector using FBG for FTTH, etc.
Specification
φ2.5 Ferrule | φ1.25 Ferrule | ||
Outside Diameter | φ2.4990±0.0005 mm | φ1.2490±0.0005 mm | |
End-face Shape | FLAT | ||
Concentricity | ≦ 0.0014 um (Concentricity Assurance at Both Ends) | ||
Inside Diameter | φ0.125 〜 φ0.127 um | ||
Slot | Slot or no Slot | ||
Ferrule Length | 5 〜 22 mm |
