Ferrule Material

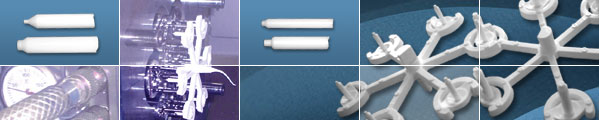

Blank for Zirconia Ferrule |
|
|
|
 @@ |
|
 |
Using Sumitomo Osaka Cement and Tosoh Cement for raw material ( zirconia powder and forming precise blank ). |
|
LOGOS ferrule is well known for its high quality. Because developing ferrule
blank.
We can supply ferrule blank. |
|
Not only standard ferrules SC, ST, LC, LC/MU but also special size ferrules
are available upon your request. |
|
Developed no lapping unisize diameter for MM ferrules are now available. |
|
|
|
|
 |
 |
|
|
SM |
MM |
| Outside Diameter |
Σ1.7 }0.03 |
| Inner Diameter |
Σ0.115 }0.03 |
Σ0.127 +0.003/-0.002 |
| Concentricity |
0.02 |
| Length |
8.0 } 0.3 |
| Other |
Angle of end of ferrule 30 |
| --- |
No lapping inside |
|
| ¦ Unit of length mm. |
|
|
|
|
|
 |
|
|
SM |
MM |
| Outside Diameter |
Σ1.7 }0.03 |
| Inner Diameter |
Σ0.115 }0.03 |
Σ0.127 +0.003/-0.002 |
| Concentricity |
0.02 |
| Length |
8.0 } 0.3 |
| Other |
Angle of end of ferrule 35 |
| --- |
No lapping inside |
|
| ¦ Unit of length mm. |
|
|
|
|
|
 |
|
|
SM |
MM |
| Outside Diameter |
Σ2.62 +0.04/-0.02 |
| Inner Diameter |
Σ0.115 }0.03 |
Σ0.127 +0.003/-0.002 |
| Concentricity |
0.02 |
| Length |
12.8 } 0.5 |
| Other |
--- |
No lapping inside |
|
| ¦ Unit of length mm. |
|
|
|
|
|
 |
|
|
Step |
Cone |
| Outside Diameter |
Σ2.62 +0.04/-0.02 |
| End-face OD |
Σ2.1 +0/-0.15 |
Σ0.8 }0.03 |
| Inner Diameter |
Σ0.115 }0.03 |
| Concentricity |
0.02 |
| Length |
12.75 } 0.5 |
|
| ¦ Unit of length mm. |
|
|
|
|
|
 |
|
|
SM |
MM |
| Outside Diameter |
Σ2.62 +0.04/-0.02 |
| Inner Diameter |
Σ0.115 }0.03 |
Σ0.127 +0.003/-0.002 |
| Concentricity |
0.02 |
| Length |
15.00 } 0.5 |
| Other |
--- |
No lapping inside |
|
| ¦ Unit of length mm. |
|
|
|
|
|
 |
|
|
Long |
SMA |
| Outside Diameter |
Σ1.7 }0.03 |
Σ3.32 }0.03 |
| Inner Diameter |
Σ0.115 }0.03 |
| Concentricity |
0.02 |
| Length |
20.0 } 0.5 |
15.4 } 0.5 |
|
| ¦ Unit of length mm. |
|
|
|
|
|
|
|
|
