Optical Connector
Fiber Optic Connector |
|
|
|
 |
|
The optical connector is one of the most essential for optical communucation.
The connectors connect with optical devices, module, and fibers.
Our connectors are of high quality with high fiber insertion stability
and a precise polishing process.
Our connectors are produced in own Chinese Factory by own technologies.
We offer connectors with stable qualities that use our own manufactured
high quality zirconia ceramic ferrules, however we also manufactured the
connection with supplied ( customeis ) ferrules. |
|
|
|
|
|
|
Single Mode(SM) |
Malti Mode(MM) |
| Connectors |

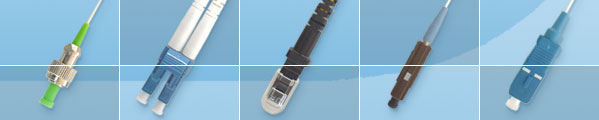

FC, SC, ST, MU, LC |
FC, SC, ST, MU, LC |
| Insertion Loss (dB) |
| ≦ 0.3 |
|
(PC) |
| ≦ 0.2 |
|
(UPC) |
| ≦ 0.3 |
|
(APC) |
|
≦ 0.2 ( PC ) |
| Reflection Loss (dB) |
| ≧ 45 |
|
(PC) |
| ≧ 50 |
|
(UPC) |
| ≧ 65 |
|
(APC) |
|
--- |
| Exchangeability |
| ≦ 0.2 dB |
( Connect Randomly ) |
|
| Tensile Strength |
|
| Vibration |
| ≦ 0.2 dB |
( 5～50Hz, 1.5mm Amplitude ) |
|
| Temp. Range |
| ≦ 0.2 dB |
( - 40 ～ 80 C, 55 Cycles ) |
|
|
|
|
|
Geometric Specification of Finished End-face |
|
|
|
|
PC |
APC |
| Radius of Curvature |
10 ～ 25 ㎜ |
5 ～ 15 ㎜ |
| Apex Offset |
≦ 50 um |
≦ 100 um |
| Fiber Spherical Height |
-90 nm , +50 nm |
| Angular Offset |
--- |
8°± 0.5°C |
|
|
|
|
|
| SC/PC/SM |
 |
|
| SC/APC/SM |
 |
|
| SC/PC/MM |
 |
|
| FC/PC/SM |
 |
|
|
| FC/APC/SM |
 |
|
| FC/PC/MM |
 |
|
| LC/PC/SM |
 |
|
| MU/PC/SM |
 |
|
|
| ST/PC/SM |
 |
|
| ST/PC/MM |
 |
|
| MT-RJ |
 |
|
| MPO |
 |
|
|
| Various type of optical connectors are able available. Please feel free
to contact us. |
|
|
|
|
|
|
|
|
|
|
