Ferrule Inspection Machines |
|
|
|
 |
|
Auto Outside Diameter Measuring Equipment
ODM
|
 |
|
|
|
|
|

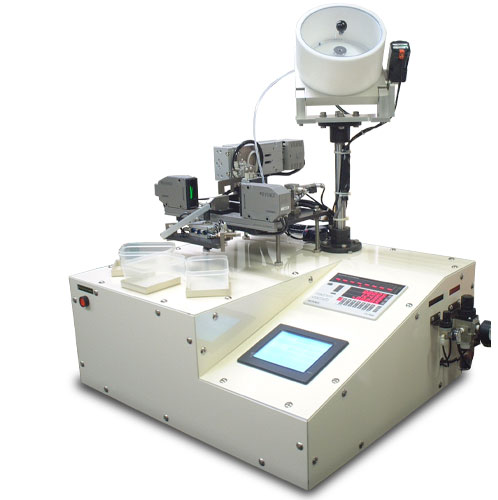

 This instrument can mesure a diameter of Ferrule precisely. |
Ferrule thrown into parts feeder is distinguished in the direction and
is besing inserted into the laser measurement parts.
Upper limit value and
lowerlimit value are set on the controller of the laser in advance.
The outside diameter of ferrule is measured three points, and it is discharged
to three kinds box. (Big, Small, OK) |
|
|
|
|
|
|
| Specification |
Supply Electric Power |
AC100V |
| Movement Control |
Omron sequences CX series
Touch panel of Keyence make |
| Work Feed Control |
SMC Robot cylinder |
| Parts Feeder Insert Number |
Limit 4000 pcs |
| Inspection Speed |
720 pcs/hour |
| Size and Weight |
Size |
1200㎜×420㎜×800㎜ |
| Weight |
45Kg |
|
|
|
|
|
|
|
|
