Ferrule Inspection Machines |
|
|
|
 |
|

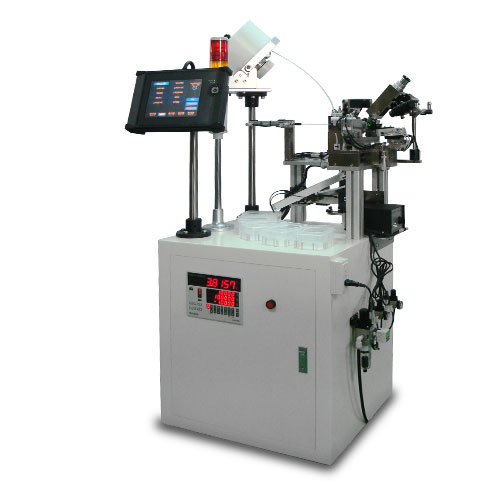

Concentric Instrument
CM
|
 |
|
|
|
|
|
 This machine can mesure the Concentric Level of inside diameter to outside
of Ferrule with in few seconds. |
Insert the pin into the hole of Ferrule from no Vside and turn the workpiece
Measure the swing of the pin by the laser measuring equipment.
The eject
selection are four places.(can change more places on option)
It is possible
to change the select with the touch panel.
Use the stepping motor for the
work eject and the work revolution.
The sequencer and touch panel controls
this machine.
If you want, the touch panel with the function of the print can
use, and then can print the
display.(Option) |
|
|
|
|
|
|
|
|
| Specification |
Inspection Speed |
360 pcs/h |
| Measuring Tolerance |
±0.1μ |
| Parts Feeder |
4000 pcs |
| Get eject Number |
4000 pcs/１case |
| Supply Electric Power |
100V |
| Supply Air |
0.4MPa |
| Measuring system |
OMURON 3Z4L-S501R |
| Touch Panel |
KEYENCE VT2-10TB |
| Size and Weight |
Size |
600㎜×500㎜×1,500㎜ |
| Weight |
80Kg |
|
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
| Measuring Pin |
|
Ruby Spindle for Workpice |
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
| Print Out Unit |
|
Eject selection is able to increase up to 6 |
|
|
|
|
|
|
|
|
|
|
|
